220 V LED Flasher Circuit
  • Parts List:- Transistor BC547
  • Diode IN4007 , LED
  • Capacitor 470uf/16 or 25 v
  • Resistor 220k and 100 ohm 1/4watt

Friends this is very simple circuit to flash LED on 220 volt ac directly. In this circuit we will use transistor collector and emitter and leave the base . If u need more speed for flashing use 220uf capacitor and if you need slow speed use 1000uf or 2200uf capacitor . please see video for detail

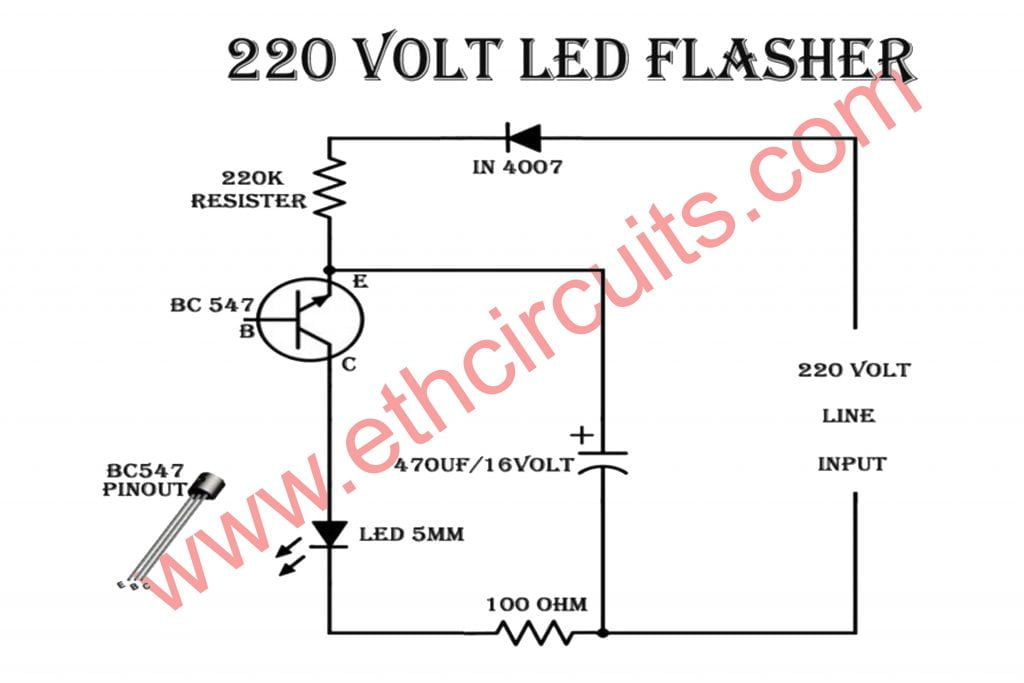

220 Volt LED Flasher
