Delay Timer Circuit
  • Parts List:- Transistor BC547
  • Relay 12 Volt
  • Resistor 22k , 1k 1/4watt
  • Capacitor 1000uf/25volt
  • LED
  • Push to on Switch

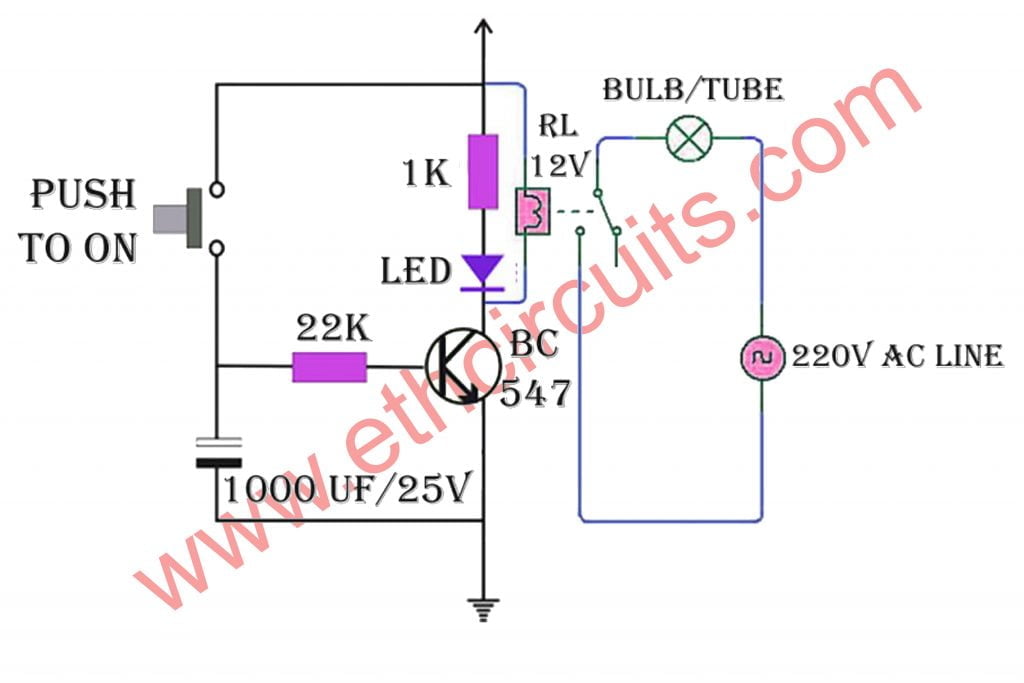

Friends this is very easy circuit for staircase light , light will auto off after some time . Actually this is a simple delay timer circuit based on transistor BC547 if you want to light for extra time use 2200uf capacitor instead 1000uf
