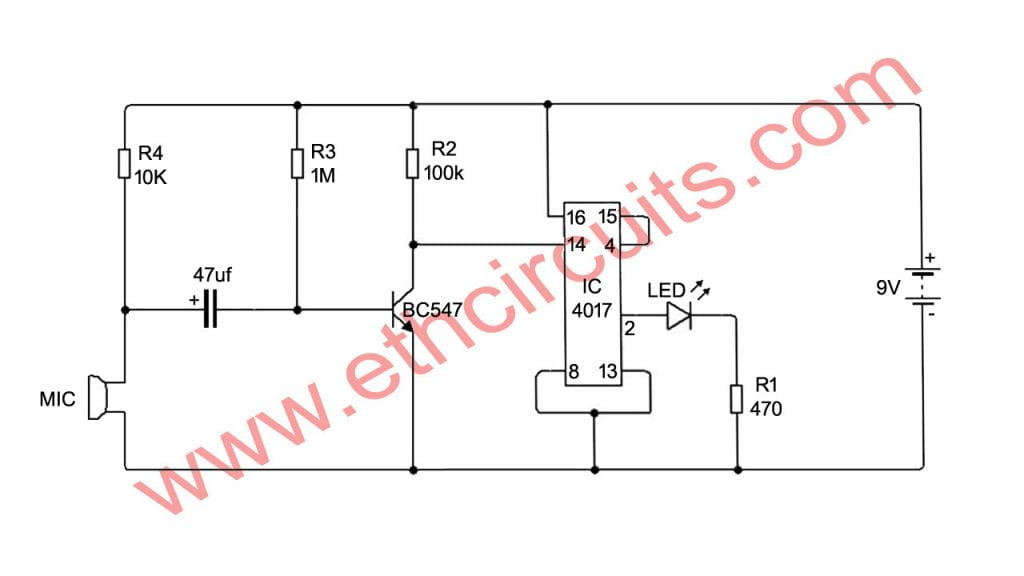

Clap Switch Circuit
  • IC 4017
  • Transistor BC547
  • MIC
  • Capacitor 47uf/25v
  • Resistor 10k, 1M, 100k, 470ohm 1/4watt
  • Battery 9V

Clap ON – Clap OFF circuit is the circuit that can be used to control a variety of electronic equipment by just a CLAP. One clap turns the load ON and another clap turns it OFF. It’s very common and simple to make this circuit using IC 4017

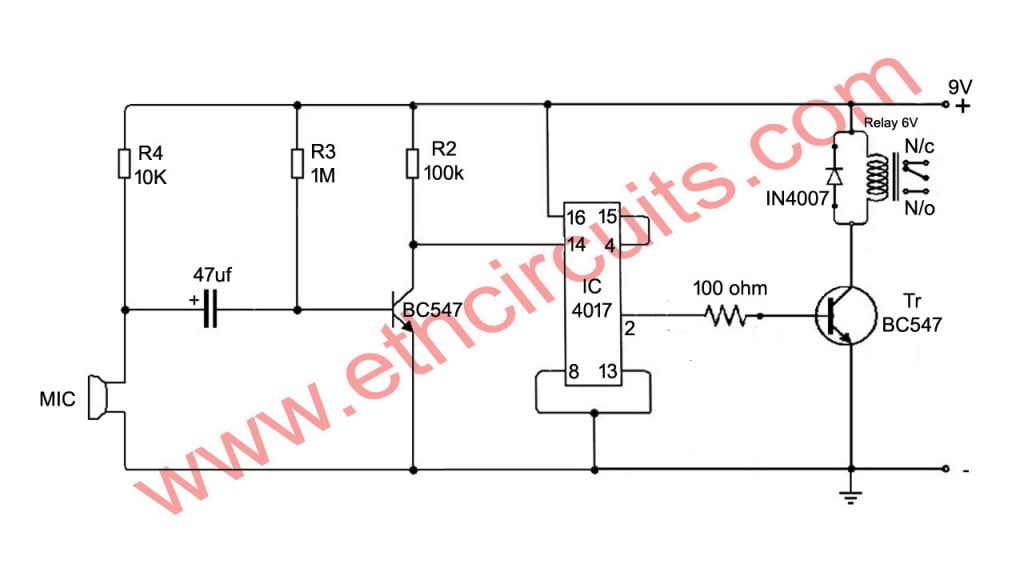

Clap Switch Circuit With Relay

Clap Switch Circuit With Relay
